BarYak Expedition SL 2020

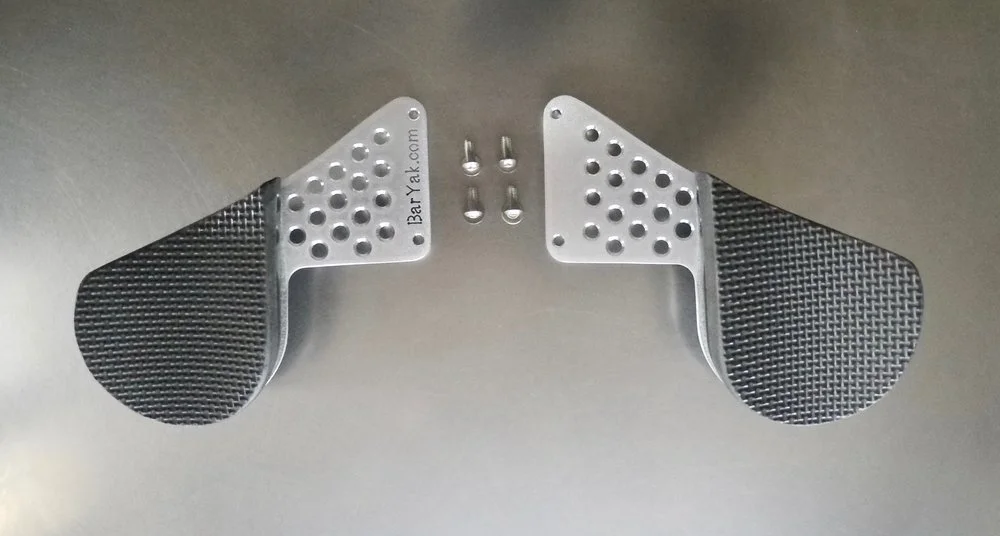

COMPLETE (with Aluminum Peregrine arm rest) AND CARBON BAR ENDS

Not Temperature Sensitive

Features:

Carbon crossbar (11” / 28cm) and 22.2 mm in diameter
 -Stress tested to 150lbs
 -Rails CNC machined from aluminium billet and anodized
 -Carbon fiber bar ends, tube and arm rest
 -Weight of complete system
 -(Mounts) Pass-through attachment for Strap & 10-32
 -Fits 35 and 31.8mm Bars with Optional shim kit.

 Accessory screw mount, Screw & Strap **Not  included**

PEREGRINE ARM REST, not recommended for Drop bars, because of lost top bar real-estate .. we recommend the Profile Design Flip up arm rest.

( Not recommended for bars with a rise greater than 25mm. )

Mounting: Once Your desired BarYak width is determined, secure the bottom Bracket to the handlebar by inserting the “C" clamp bolts through the Top and into the bottom “C “ bracket, Using the 4mm Allen wrench, evenly tighten these bolts to a torque of 42–63in-lbs. (4.7–7.2N-m). Note: You may have to un-wrap the top section of handlebar tape in order to gain the desired clamping width. Do not route the brake or shift cable housing underneath the aerobar brackets—this will affect braking and/or shifting performance.

Carbon Bar ends - tighten these bolts to a torque 4.7N-m

• We Recommend tethering all devices..

**DO NOT Use Tape Under the BarYak Clamp & only use on TT rated Handle Bars, ( Carbon, Aluminum, & Titanium )
