BarYak Ultra 35 Complete Kit with Carbon Crossbar

from $215.79

31.8mm to 35mm Shim Kit:

Red Shim Kit Black Shim Kit No Shim Kit

Quantity:

Add To Cart

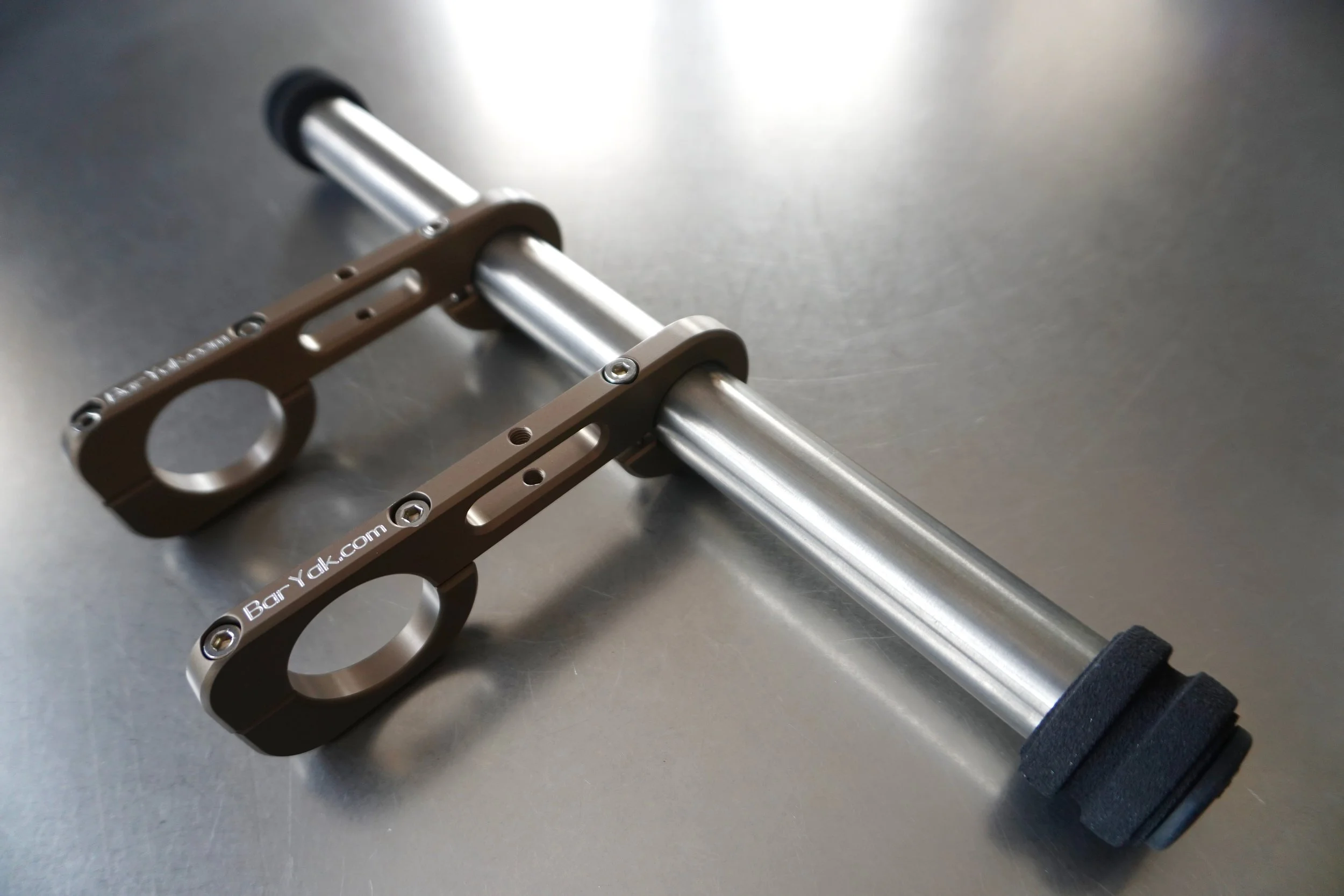

BarYak Ultra 35

Stress tested to 150 pounds
CNC machined billet Black anodized 6061T aluminum rails
3mm hex or T20 Torx head and 10-32 thread pitch on all accessory mount screws
Fits 35mm and 31.8mm diameter bars
- 35mm to 31.8mm shim kit available
Rail Dimensions: 5.2” L x 0.35” W x 1.65” H (13.2cm L x 0.9cm W x 4.2cm H)
Weight of single rail 4.8 oz / 136grams
( Screw Kits & production Ultras )
- For more updated version of the Ultra 35mm we have upgraded 3mm hex or T20 Torx head that we are now custom cutting the screws to maximize the purchase the threads have in the C- clamps. We’ve never had a problem in the past, we just feel it’s a better idea in moving forward to have as many threads to occupy the clamp to ensure more contact. We have color coded the screws to give an example below.

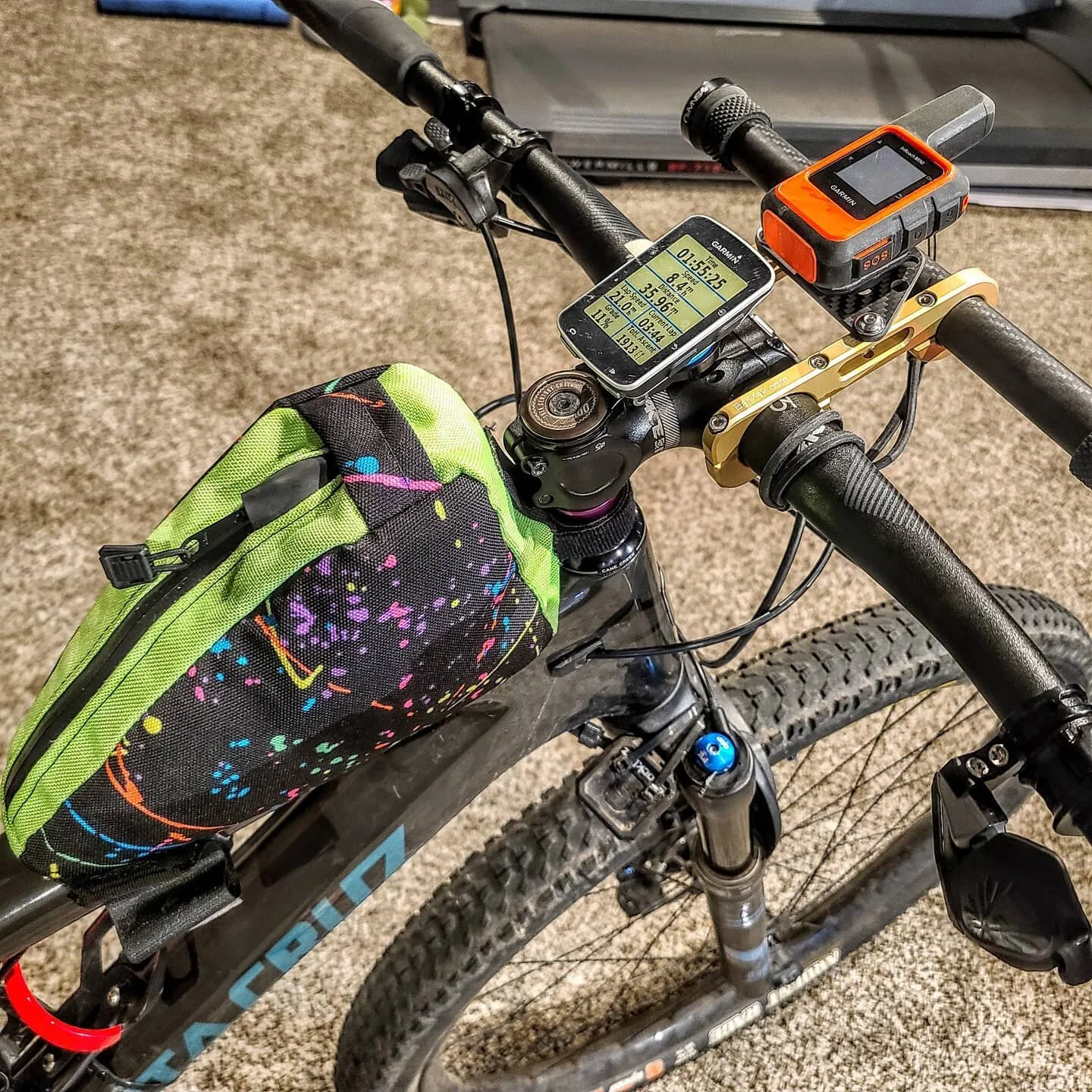

Determine desired BarYak placement
- If mounting to drop bars, you may need to unwrap the top section of handlebar tape for desired clamping width.
Using supplied screws, secure C-clamp (bottom) around the handlebar to BarYak rails
Important: BarYak must be mounted directly to handlebars. DO NOT use tape.
Using a 3mm hex wrench, evenly tighten the bolts
- Torque Specifications: 5.7Nm (4.2 foot-pounds)
Lock-on Bar ends - tighten these bolts to a torque 4.7N-m

IMPORTANT: ALWAYS MOUNT BARYAK DIRECTLY TO HANDLEBARS (do not use tape)
