BAR RAILS ONLY

If you have a 31.8 mm handlebar, please choose a shim kit above to mount the rails to your handlebar.

Features:
 -Stress tested to 150lbs

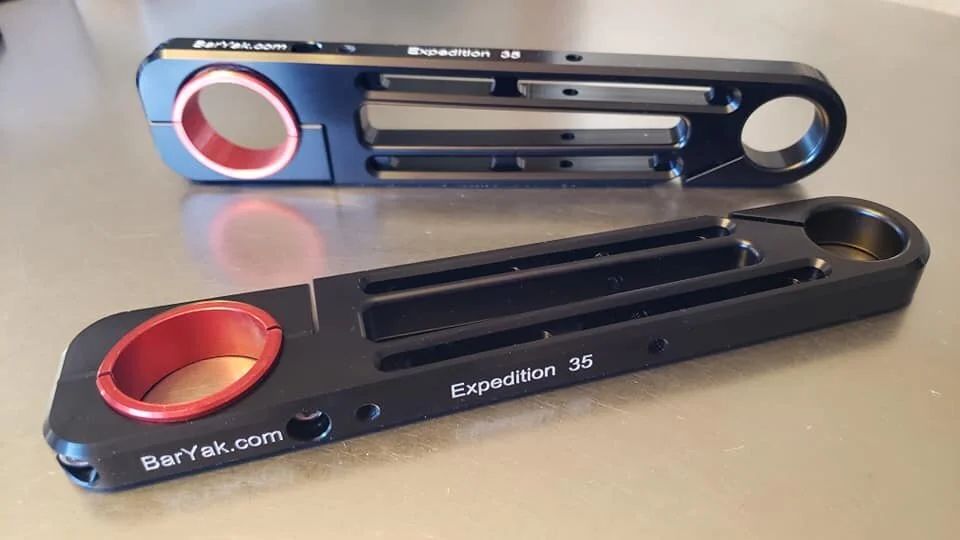

 -Rails CNC machined from aluminum billet and anodized

-Fits 35 and 31.8mm Bars with optional shim kit.

 -New 2023 Lighter Weight of single rail 4.65oz - 133gm
(Mounts) Pass-through attachment for Strap & 10-32 accessory screw mount, Screw & Strap **Not  included**

Mounting: Once Your desired BarYak width is determined, secure the bottom Bracket to the handlebar by inserting the “C" clamp bolts through the Top and into the bottom “C “ bracket, Using the 4mm Allen wrench, evenly tighten these bolts to a torque of 42–63in-lbs. (4.7–7.2N-m). Note: You may have to un-wrap the top section of handlebar tape in order to gain the desired clamping width. Do not route the brake or shift cable housing underneath the aerobar brackets—this will affect braking and/or shifting performance.

**DO NOT Use Tape Under the BarYak Clamp & only use on TT rated Handle Bars
